Vacuum Brazing Process: Step-by-Step Guide for Industrial Applications

Why Understanding the Vacuum Brazing Process Matters

In industrial manufacturing, vacuum brazing is widely used for producing high-reliability assemblies where traditional joining methods fall short.

However, many performance issues—such as weak joints, leakage, or deformation—are not caused by materials, but by improper process control.

Understanding each stage of the vacuum brazing process is essential for:

• improving joint quality
• reducing defect rates
• ensuring repeatability
• optimizing production efficiency

This is especially important for industries such as:

• heat exchanger manufacturing
• aerospace components
• automotive cooling systems
• electronics thermal management

What Is Vacuum Brazing?

Vacuum brazing is a joining process performed in a sealed furnace under high vacuum conditions.

The process works by:

• heating base materials to a specific temperature
• melting a filler metal (without melting the base material)
• allowing the filler to flow into joints via capillary action
• forming a strong metallurgical bond during cooling

Because the process takes place in a vacuum, it prevents:

• oxidation
• contamination
• flux residue

This results in cleaner, stronger, and more consistent joints.

Step 1: Material Selection and Joint Design

The process begins long before the furnace cycle.

Proper material selection and joint design are critical.

Key considerations:

• compatibility between base material and filler metal
• melting temperature range
• joint clearance (typically 0.02–0.1 mm for capillary flow)
• thermal expansion differences

Poor joint design can lead to:

• incomplete filling
• weak bonding
• void formation

For aluminum heat exchangers and stainless steel assemblies, precision in this stage directly affects final performance.

Step 2: Surface Preparation

Surface condition has a direct impact on brazing quality.

Before brazing, all components must be thoroughly cleaned.

Typical preparation includes:

• degreasing (removal of oil and contaminants)
• ultrasonic cleaning
• chemical cleaning or pickling
• drying

Any contamination can:

• prevent filler metal wetting
• create voids
• reduce joint strength

For high-precision applications, even minor surface impurities can cause failure.

Step 3: Assembly and Fixturing

After cleaning, parts are assembled into their final configuration.

Important factors:

• correct alignment
• stable positioning
• uniform joint gaps
• proper fixture design

Fixtures must:

• withstand high temperatures
• avoid contamination
• allow thermal expansion

Improper fixturing may result in:

• distortion
• misalignment
• inconsistent joints

Step 4: Loading and Vacuum Pumping

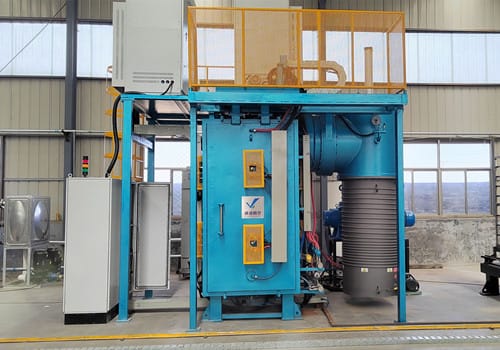

The assembled components are loaded into the vacuum furnace.

The chamber is then evacuated to remove:

• oxygen
• moisture
• residual gases

Typical vacuum levels:

• medium vacuum: 10⁻² to 10⁻⁴ mbar
• high vacuum: below 10⁻⁵ mbar

This step is critical to ensure:

• oxidation-free conditions
• clean metallurgical bonding

Step 5: Controlled Heating

Heating is performed in a controlled, programmable manner.

Heating stages usually include:

• gradual ramp-up
• binder removal (if applicable)
• preheating
• approach to brazing temperature

Uniform heating is essential.

Uneven temperature distribution can cause:

• thermal stress
• distortion
• uneven filler flow

Modern vacuum furnaces use multi-zone control to maintain temperature consistency.

Step 6: Brazing (Filler Metal Melting and Flow)

At the brazing temperature:

• filler metal melts
• capillary action draws it into the joint
• bonding occurs at the interface

This is the most critical stage.

Key parameters:

• precise temperature control
• holding time
• vacuum stability

If parameters are not controlled properly, defects may occur:

• incomplete filling
• porosity
• weak joints

For aluminum brazing, temperature control is especially sensitive due to the narrow melting range.

Step 7: Controlled Cooling

After brazing, the assembly is cooled under controlled conditions.

Cooling methods include:

• vacuum cooling
• inert gas cooling (nitrogen or argon)
• forced convection cooling

Cooling rate affects:

• microstructure
• residual stress
• dimensional stability

Rapid or uneven cooling can lead to:

• cracking
• distortion
• reduced mechanical properties

Step 8: Inspection and Quality Control

After the process, parts must be inspected to ensure quality.

Common inspection methods:

• visual inspection
• leak testing
• pressure testing
• X-ray inspection
• metallographic analysis

For critical applications such as heat exchangers or aerospace parts, leak testing is mandatory.

Common Mistakes in Vacuum Brazing

Even with advanced equipment, several common issues can affect results:

• insufficient cleaning
• incorrect joint clearance
• improper temperature profile
• poor vacuum level
• inadequate fixture design

Avoiding these mistakes significantly improves yield and consistency.

Typical Applications

Vacuum brazing is widely used in:

Heat Transfer Systems

• aluminum heat exchangers
• condensers
• evaporators
• cold plates

Aerospace Components

• honeycomb structures
• engine parts
• sensor assemblies

Industrial Equipment

• fluid control systems
• precision metal assemblies

Why Process Control Is More Important Than Equipment Alone

Many manufacturers focus on furnace specifications, but in practice:

Process control determines final product quality.

A well-controlled process ensures:

• repeatability
• consistency
• reduced defects
• stable production

This is especially important for large-scale industrial manufacturing.

Final Thoughts

Vacuum brazing is not just a furnace operation—it is a multi-stage precision process.

Each step, from material selection to final inspection, directly affects:

• joint strength
• leak tightness
• dimensional accuracy
• long-term reliability

By understanding and optimizing the full process, manufacturers can achieve:

• higher product quality
• lower defect rates
• better production efficiency
